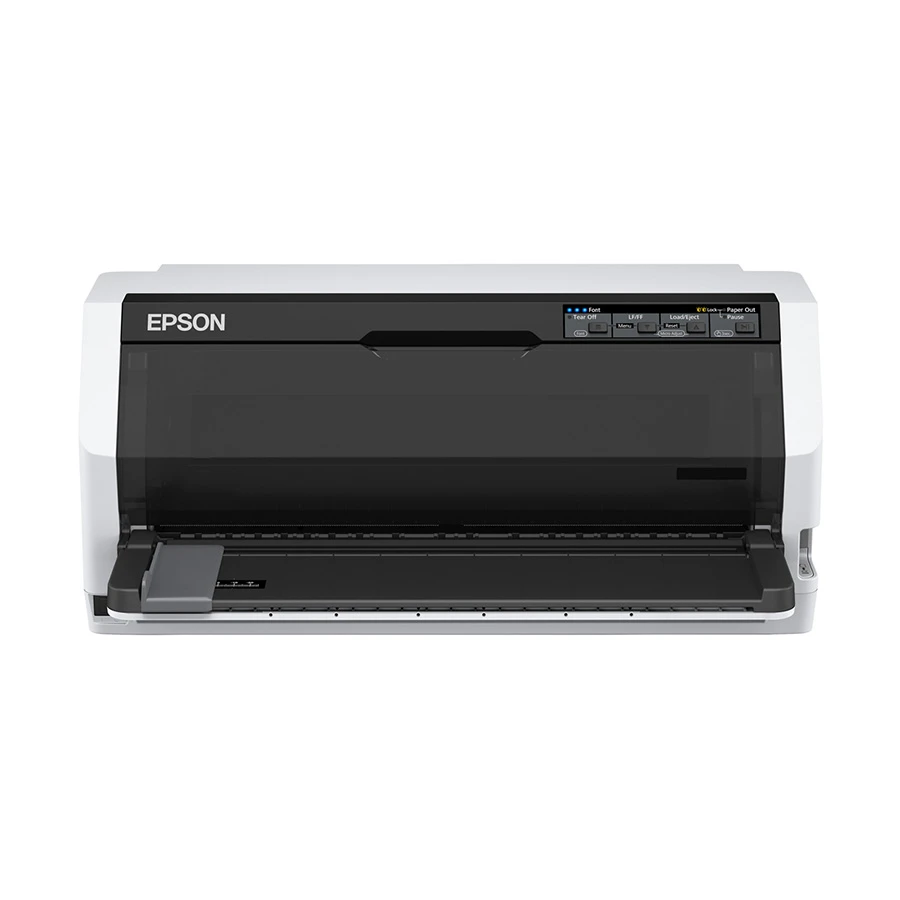

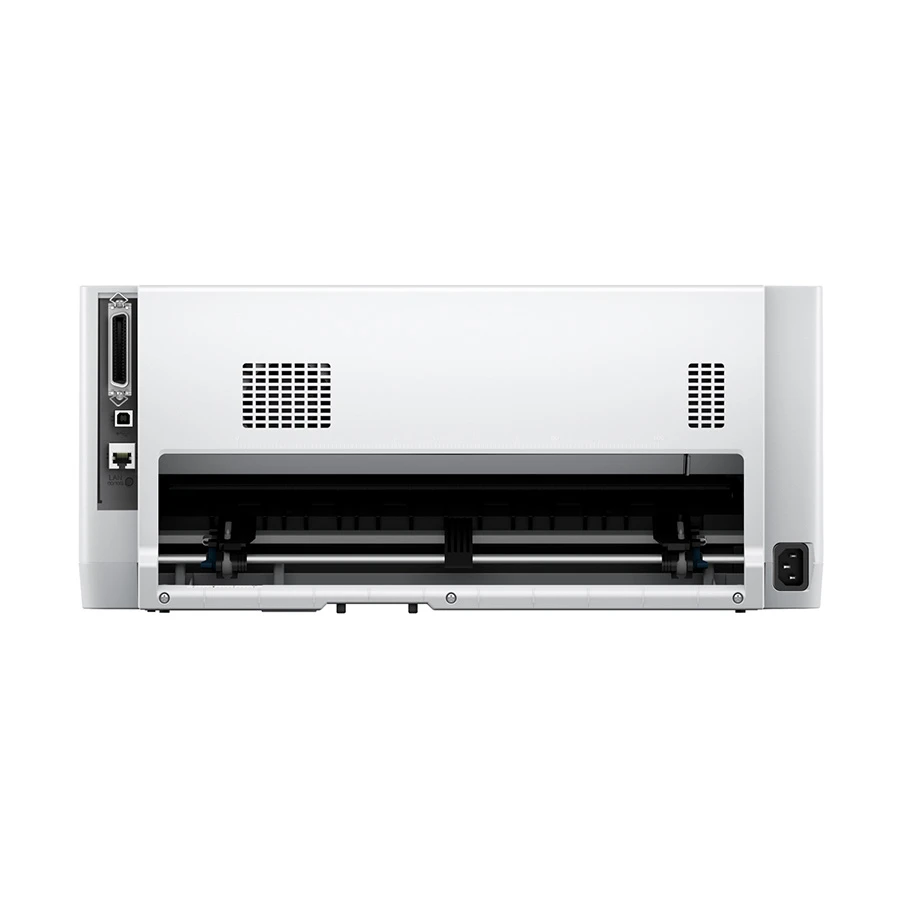

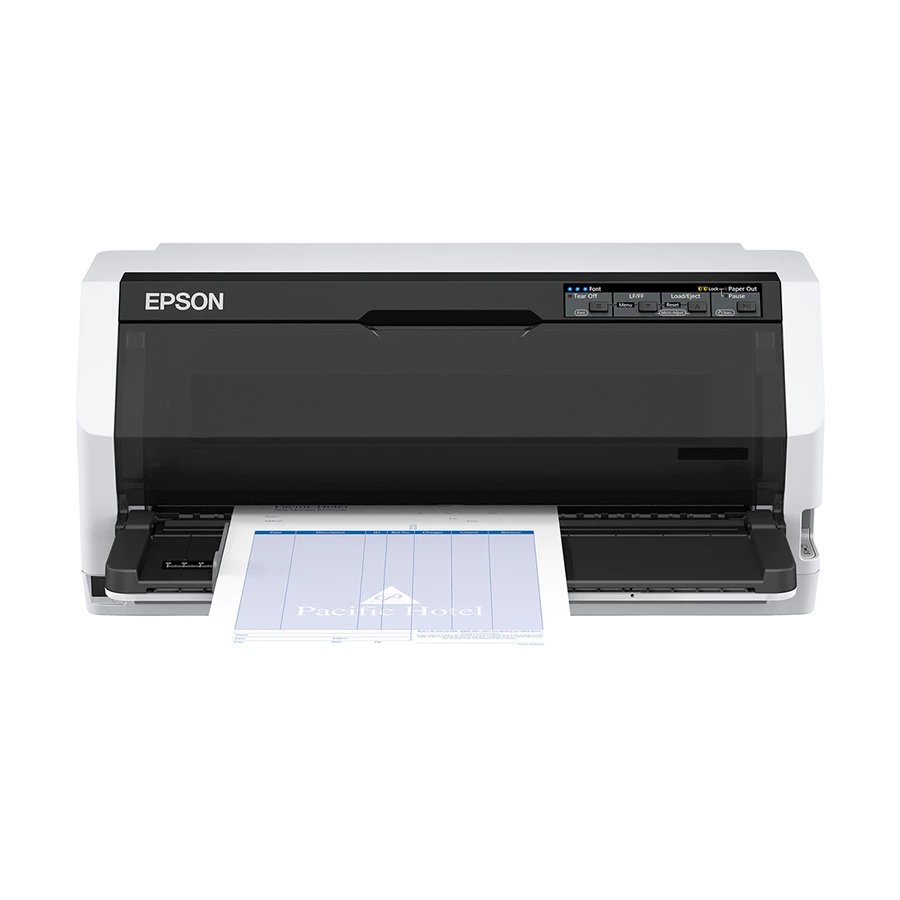

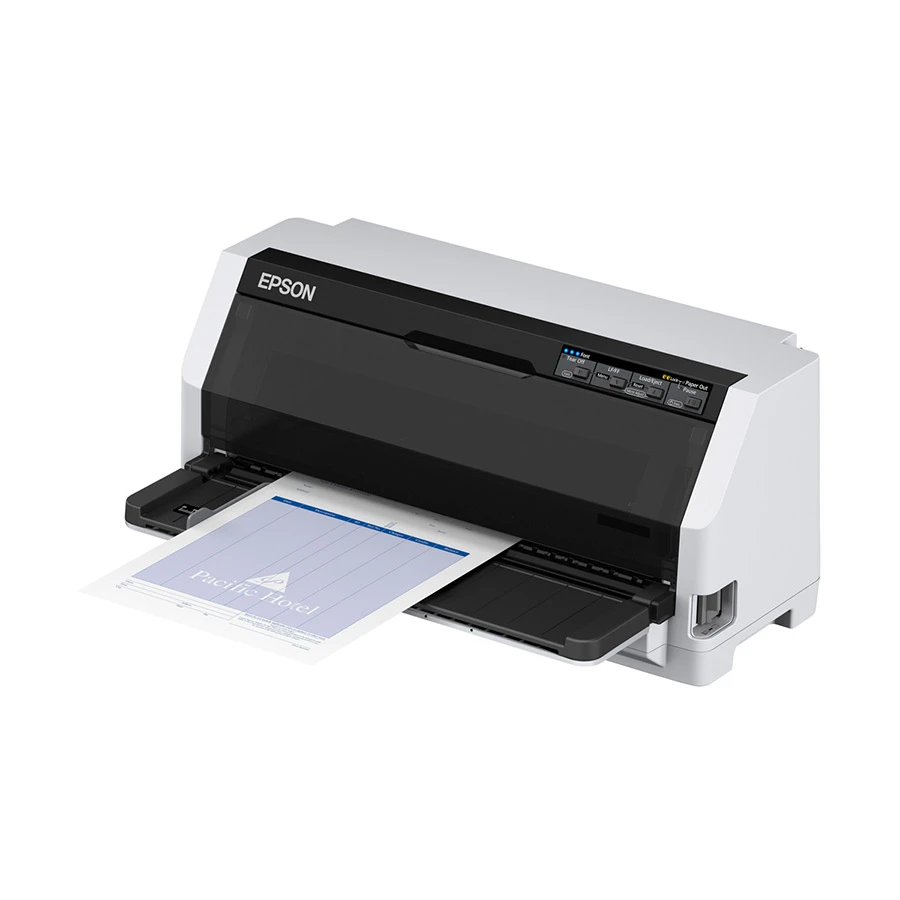

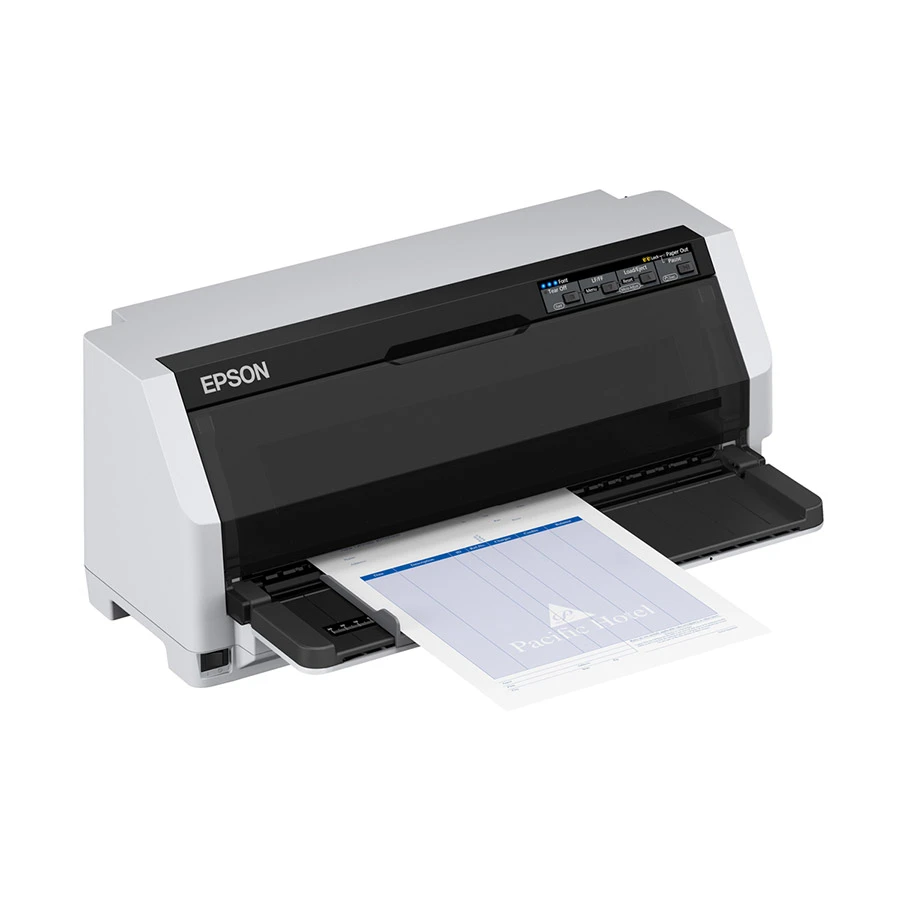

Epson LQ-690II 106-Column 24-Pin Impact Dot Matrix Printer

Specification

Basic Information
Brand	Epson
Model	LQ-690II
Product Type	Impact Dot Matrix Printer
Printer Type	24-Pin Dot Matrix
Function	Print Only
Print Technology	Impact Dot Matrix
Print Color	Monochrome
Printing
Number of Pins	24 Pins
Print Columns	106 Columns
Print Speed	Up to 487 cps
Draft Speed	Up to 487 cps
Near Letter Quality	Up to 115 cps
Print Resolution	Up to 360 × 180 dpi
Print Direction	Bi-directional with logic seeking
Print Width	Up to 106 Columns
Paper Handling
Paper Size	A4, A5, B5, Letter, Legal
Paper Type	Continuous Paper, Single Sheets, Envelopes, Labels
Paper Feed	Tractor Feed, Friction Feed
Paper Input	Rear, Front, Bottom
Number of Copies	Original + 4 Copies
Connectivity
USB	USB 2.0
Parallel Port	IEEE-1284
Ethernet	Optional
Serial Interface	Optional
Ribbon
Ribbon Type	Fabric Ribbon Cartridge
Ribbon Color	Black
Ribbon Life	Up to 10 Million Characters
Reliability
Print Head Life	Approx. 400 Million Strokes/Wire
MTBF	Approx. 20,000 Power-On Hours
Duty Cycle	Heavy-Duty Office Use
Operating System Support
Windows	Supported
macOS	Supported
Noise Level
Noise Level	Approx. 56 dB(A)
Power
Power Supply	AC 220–240V
Power Consumption	Approx. 49W
Physical Specification
Dimensions (W × D × H)	Approx. 480 × 370 × 210 mm
Weight	Approx. 7.3 kg
Color	Grey
Warranty
Warranty	01 Year Warranty (Without Adapter)
Warranty Claim Requirement	Original Product Box Mandatory While Claiming Warranty

Description

The Epson LQ-690II is a professional 24-pin, 106-column impact dot matrix printer designed for businesses that require reliable, high-volume printing of invoices, reports, forms, delivery notes, receipts, and other multi-part documents. Its durable construction and efficient print mechanism make it suitable for offices, banks, retail businesses, logistics companies, warehouses, educational institutions, and corporate environments.

With a 24-pin print head and up to 487 characters per second (cps) in High-Speed Draft mode, the Epson LQ-690II delivers fast and dependable document printing. It supports multi-part forms with up to 1 original + 6 copies, making it especially useful for businesses that need duplicate or triplicate documents without using separate printers.

The printer features a 106-column printing width and supports several paper types, including single sheets, continuous paper, multi-part forms, labels, envelopes, and card stock. Its versatile paper handling system allows businesses to print different types of documents according to their operational requirements.

The Epson LQ-690II also offers USB 2.0 and bi-directional parallel interfaces, providing convenient connectivity with compatible computers and business systems. Its ESC/P2 and IBM PPDS emulations ensure compatibility with a wide range of applications.

Built for long-term business use, the printer features a robust print head with a high-duty-cycle design. The 400-million-stroke print head life helps reduce maintenance requirements and provides dependable performance for continuous office workloads.

For organizations in Bangladesh looking for a reliable impact printer for continuous forms and multi-copy documents, the Epson LQ-690II is an excellent choice. It combines speed, durability, flexible paper handling, and professional printing performance in a compact business-oriented design.

---

User Experience in Bangladesh

The Epson LQ-690II is a practical printing solution for Bangladeshi businesses where continuous forms, invoices, challans, delivery documents, and multi-copy paperwork are still an important part of daily operations. Many corporate offices, banks, distributors, warehouses, factories, retail businesses, and logistics companies require impact printers because they need to print multiple copies of the same document simultaneously.

One of the biggest advantages of the Epson LQ-690II is its ability to print 1 original plus up to 6 copies. This is particularly useful for businesses that prepare invoices, delivery challans, stock documents, transport papers, and office records. Instead of printing each copy separately, users can produce multiple copies in a single printing process.

The printer’s high-speed printing capability is also beneficial for busy Bangladeshi offices where large quantities of documents need to be processed quickly. Its durable 24-pin print mechanism provides consistent text quality while maintaining the traditional reliability expected from impact printers.

The Epson LQ-690II supports different paper formats and continuous stationery, making it flexible for various business applications. USB connectivity also makes installation easier with modern desktop computers and office workstations.

For Bangladesh’s business environment, durability and serviceability are important considerations. Epson is a well-known printer brand, and the LQ-690II is designed specifically for demanding business printing workloads. Its long print-head life can help reduce frequent replacement and maintenance costs when the printer is properly operated.

Overall, the Epson LQ-690II offers a strong combination of speed, reliability, multi-part document printing, and long-term usability. For organizations that still depend on impact printing, it can be a dependable choice for everyday professional printing.

---

Why Choose to Buy from Next Four Solutions?

Next Four Solutions provides genuine branded IT products for corporate and business customers in Bangladesh. When purchasing the Epson LQ-690II from Next Four Solutions, customers can benefit from competitive corporate pricing, genuine products, professional technical support, reliable after-sales service, VAT invoice facilities, nationwide delivery, and dedicated support for business requirements. We also support bulk orders, corporate procurement, and project-based requirements, making Next Four Solutions a suitable partner for offices, companies, institutions, banks, factories, and other organizations.

What is the Price of Epson LQ-690II in Bangladesh?

The Epson LQ-690II price in Bangladesh may vary depending on supplier, availability, warranty coverage, and market conditions. For the latest Epson LQ-690II price in Bangladesh, please contact Next Four Solutions for the current selling price and availability.
